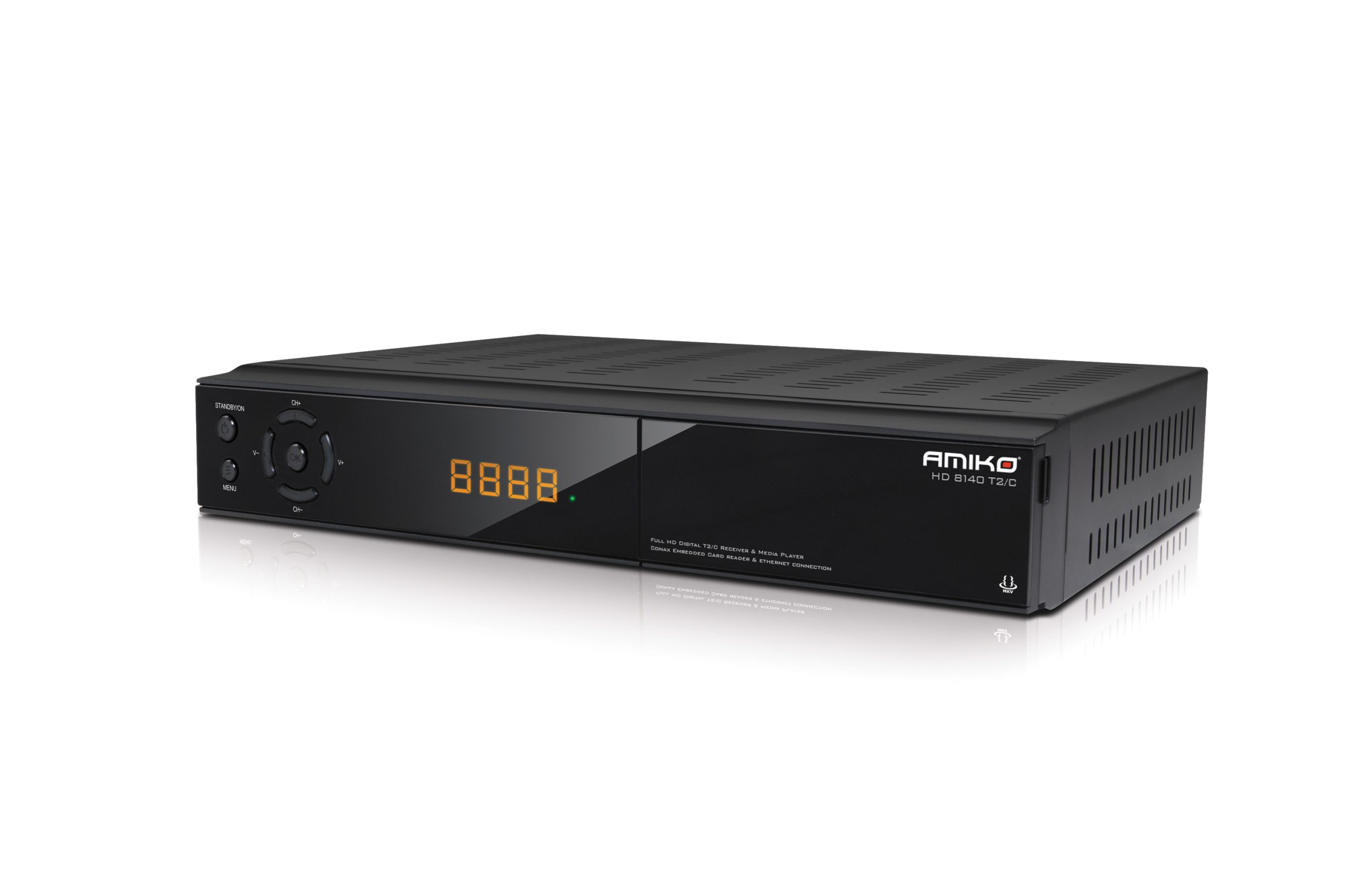

Amiko hd8140 t2/c firmware New Update

By | April 26, 2022

Download New amiko hd8140 t2/c Firmware Update. Update your AMIKO Receiver Firmware with Many New Options. For All Models of  AMIKO Satellite Receiver Latest Software Update Click Here. Any Other satellite Receiver New Update Requests and any Other Help Contact Us @ Facebook Page or Twitter.

Features of amiko hd8140 t2/c

Embedded Card Reader by Conax

5000 programmable channels (TV and radio)

One USB 2.0 high-speed connection

Ethernet and USB WiFi connectivity are provided (Ralink RT5370 chip only)

Videos from YouTube

RSS Reader and Weather Forecasting (Ethernet or WiFi connection required)

Digital audio can be output via S/PDIF or Dolby Digital Bit-Stream.

HDMI Full HD (1080p) output

External Storage Devices for Channel Recording

Support for timeshifting

True-color, User Friendly On-Screen Display (OSD)

Full Picture In Graphic (PIG) function

Electronic Program Guide (EPG) for on screen channel information

Subtitle supported

Teletext supported by VBI insertion and software emulation

Parental lock facility by channel and program event

Program and Channel information transfer from receiver to receiver

Exciting games embedded

Multi-Language support

4 Digit LED Display

RTC (Real-Time-Clock)

Power Consumption in Stand-By: <0.5W

Tuner & Demodulation

Tuner Type: DVB-T2 / DVB-C

Frequency Range: 48~862MHz

RF Input Level: -80dBm to -20dBm

Antenna power output: DC 5V at max 75mA, Overload protection

Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended

Input Symbol Rate: 1.0 ~ 7.0Ms/s

Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated

Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources

Main Processor: 400MHz based CPU

Flash Memory: 64MBits

DDR RAM: 1024Mbits

Power Supply

Input Voltage: Free Voltage (100-250V AC 50/60Hz)

Power Consumption: 30W Max

Stand-By Power Consumption: <0.5W

A/V & Data Input/Output

TV-SCART: Video CVBS/RGB output,

Audio L/R output

S/PDIF: Coaxial, Digital Audio or Dolby Digital Bit Stream Output

RS-232C: Transfer rate 115.2Kbps,

9 pin D-sub Type

USB: One USB 2.0 slots

HDMI: VER1.3, Type A

Ethernet: 10M RJ45 (optional)

Physical Specifications

Size: 220mm40mm160mm

Net Weight: 1.0KG

Operation Temperature: 0°C~+45°C

Storage Temperature: -10°C~+70°C

Storage Humidity: 5%~95% RH (Non-Condensing)

amiko hd8140 t2/c firmware Download Links

Size:- 3.7MB

Update Date:- 2022-02-12
